Crossing logic

The logic defines when sounds (repetitions and intensities) are triggered and when electrical stimuli are initiated.

This logic can be updated remotely per collar based on the farmer's needs.

Events

Event	Details
Zone entry sound	No sound on buffer-zone entry
Perimeter crossing sound	As soon as the animal enters the buffer zone (1), a strong continuous warning sound starts
Perimeter crossing sound	The sound lasts 5 seconds (single sound event)
Electrical stimulus trigger	If the animal does not move back within 5 seconds of the sound, one electrical stimulus is delivered

Definitions

(1) Buffer zone: the 2-meter zone before the perimeter limit.

Electrical stimulus values: 0.5 J at 2 kV (instantaneous).

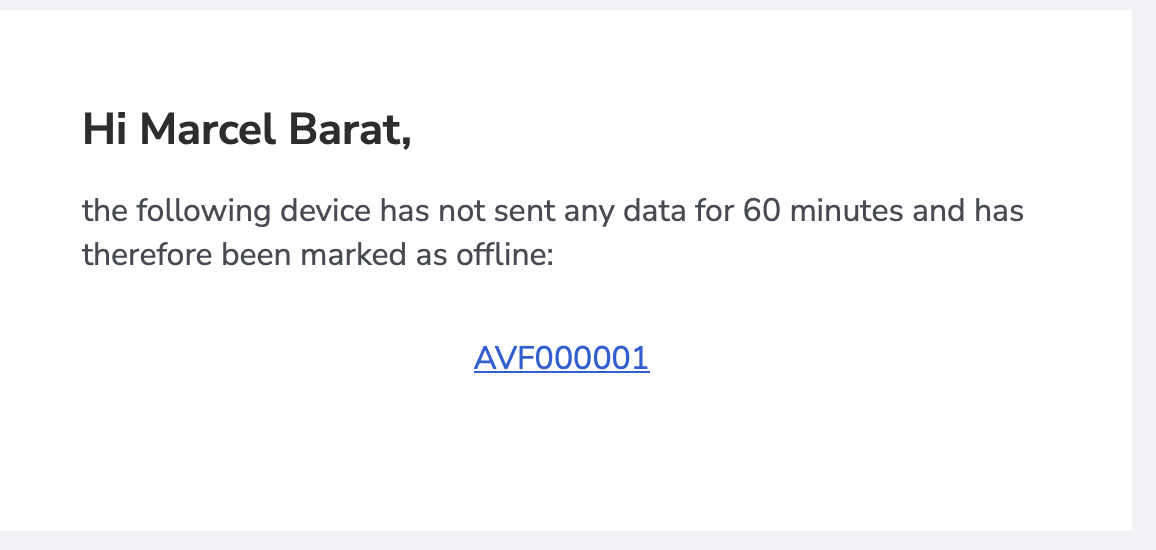

If no message is received by Datacake for more than 1 hour, an email is sent. The logic is not affected; only event transmission stops.

Status examples

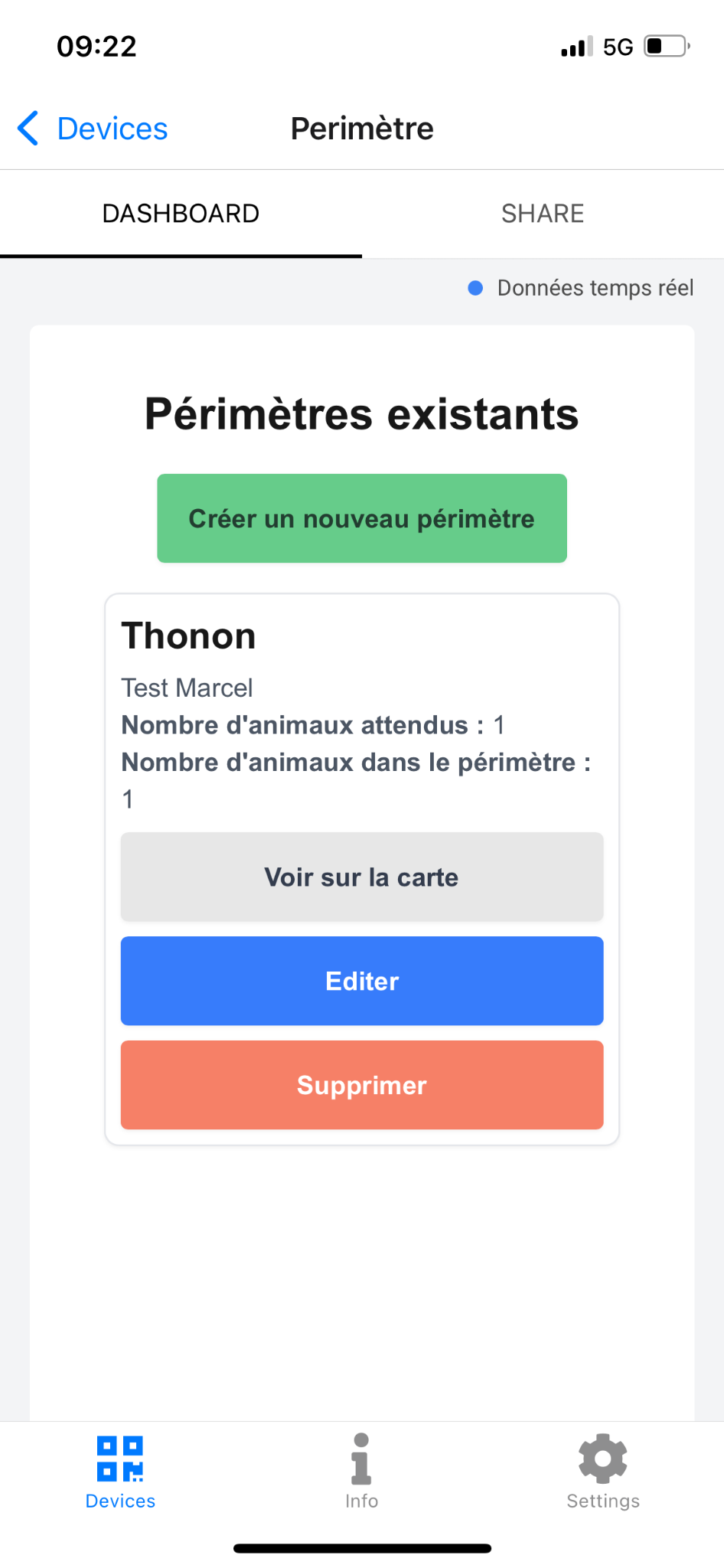

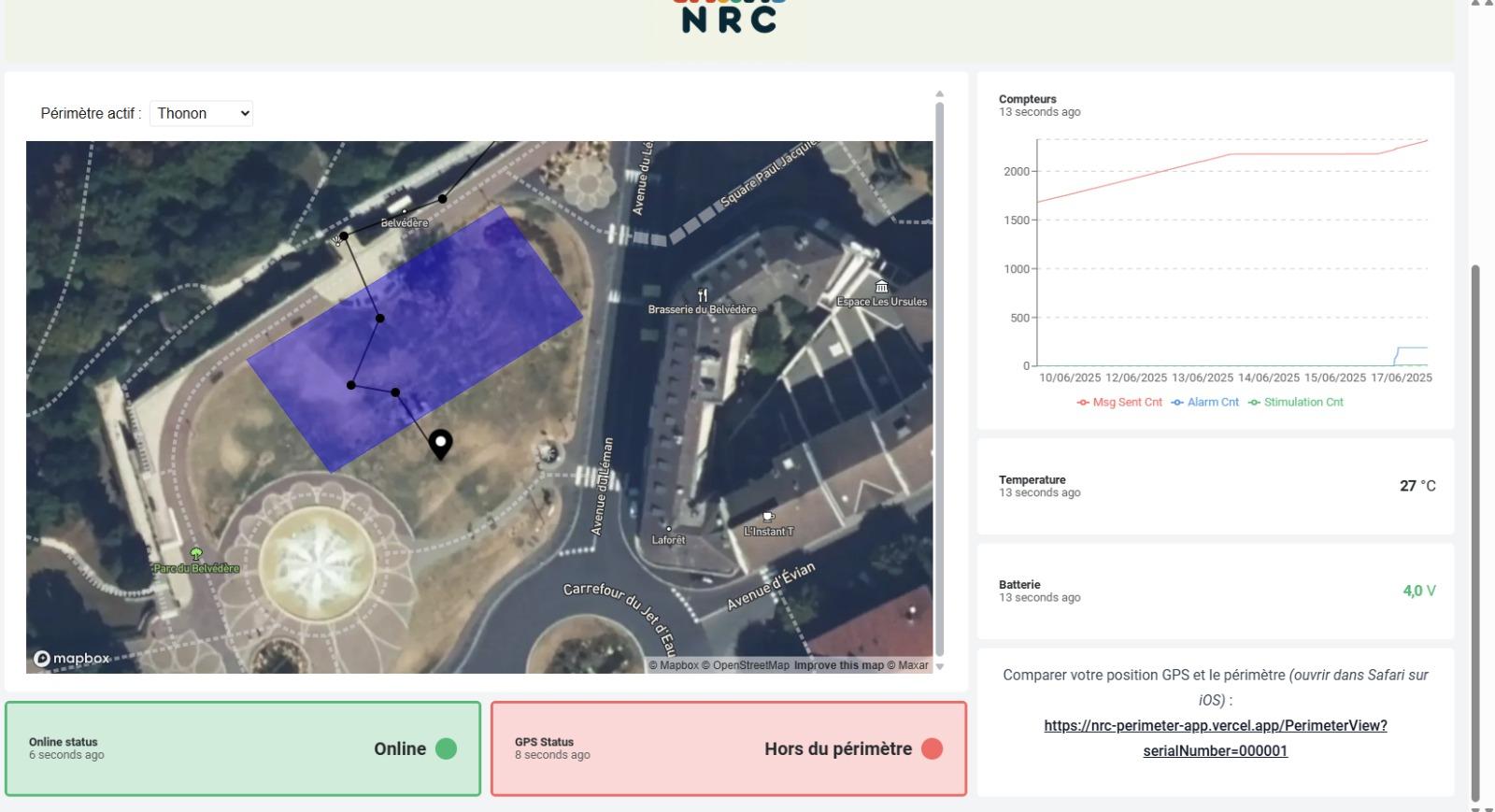

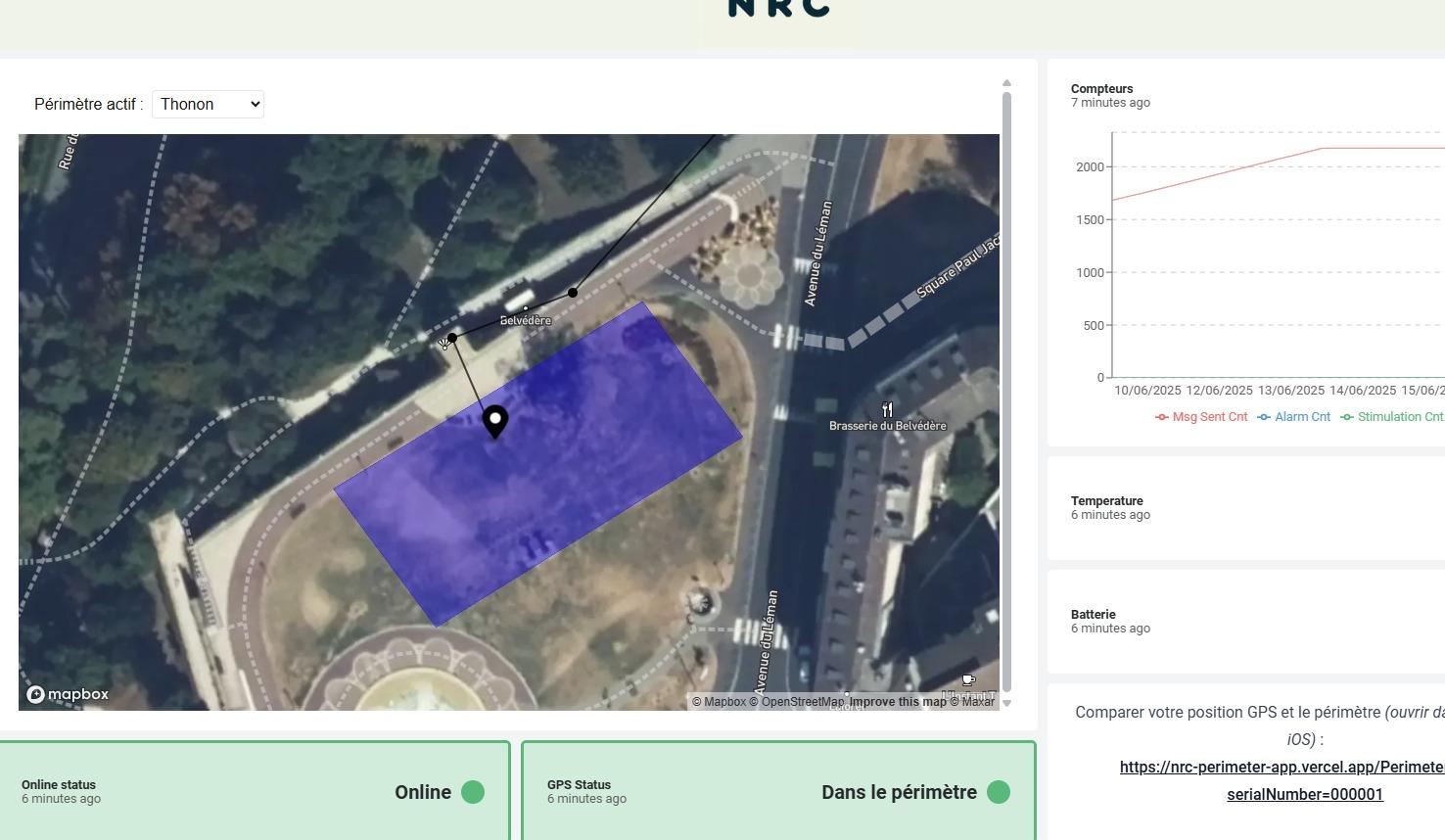

The images below show an example perimeter (Thonon) and the collar status in Datacake during power-on and zone entry.
