Perimeter management

Perimeter list​

In the left Datacake menu, select Perimeter (or MSA FR) to view the list of perimeters.

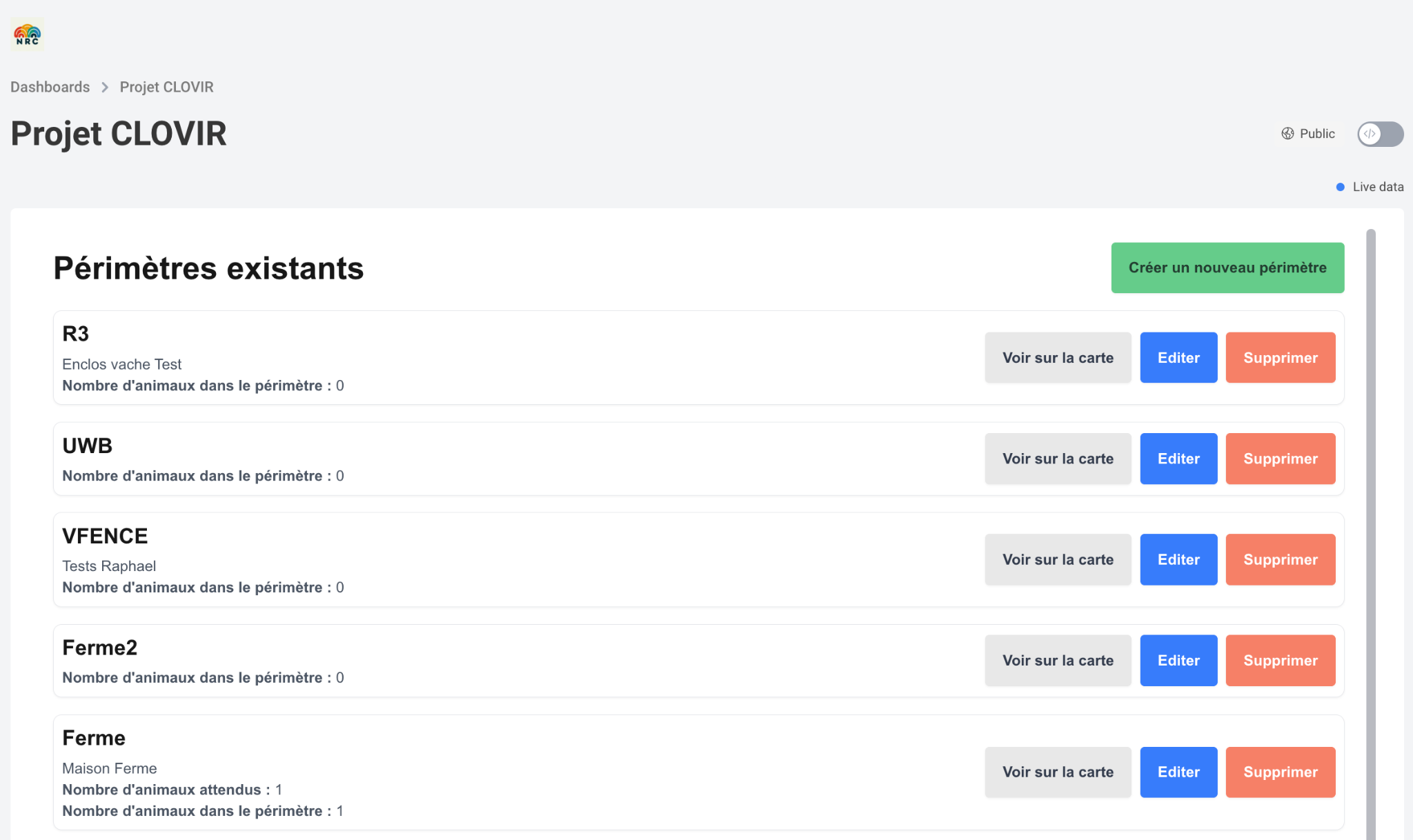

Perimeter list in Datacake

Create a perimeter​

  1. Click Create a new perimeter.
  2. Select an existing tag in Datacake (create it first if needed).
  3. Add an optional description.
  4. Click Open map to define the perimeter in the geojson.io interface.
  5. Use the rectangle or star tool to draw the perimeter polygon.
  6. Copy and paste the perimeter coordinates in GeoJSON format.
  7. Define the expected number of animals in the perimeter.

Create perimeter flow

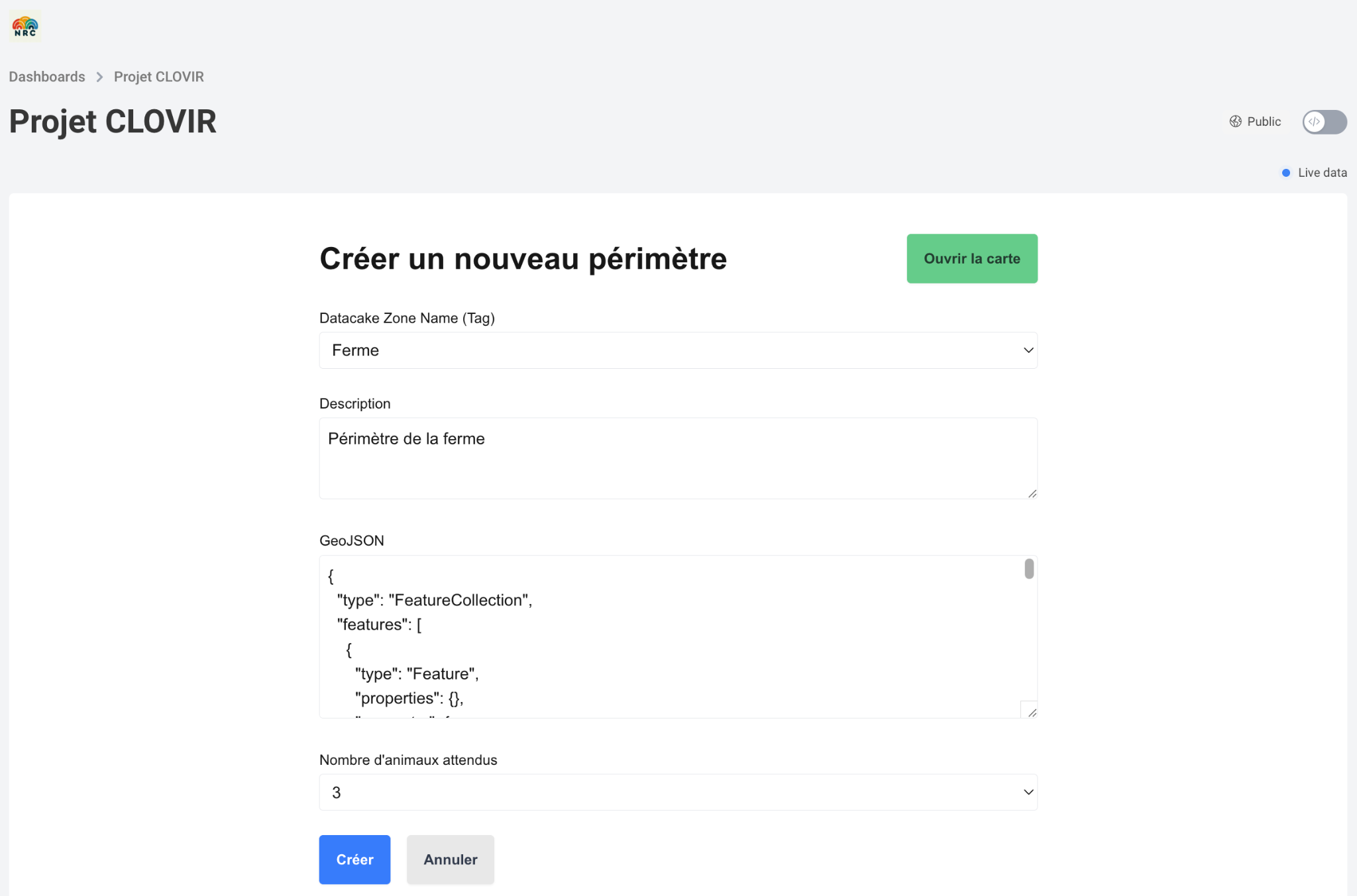

Perimeter settings example

caution

Only quadrilateral perimeters (4 sides) are supported in version 1.
